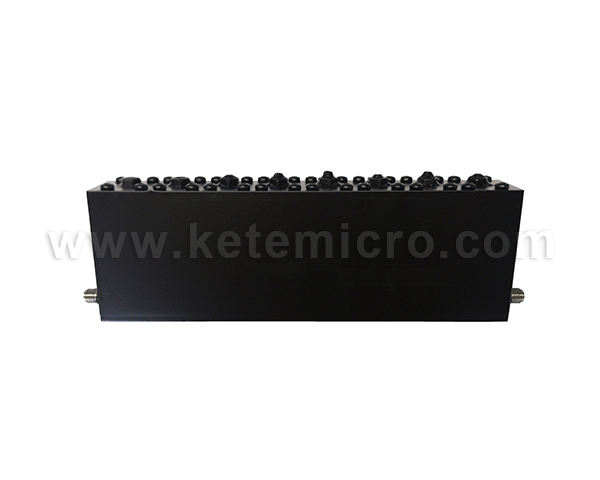

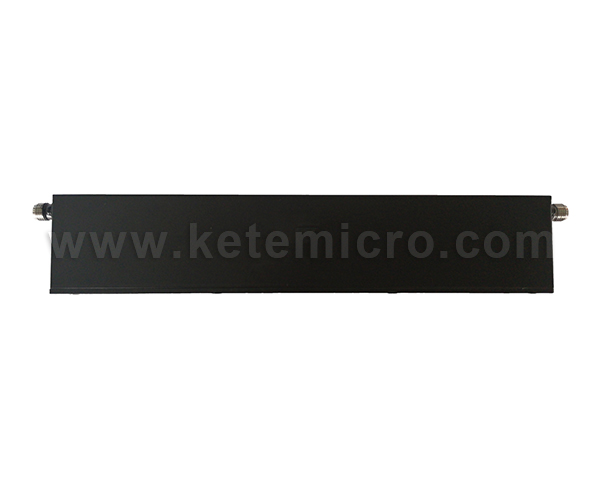

Band Stop Filter (Nortch Filter)Home > Products > RF Filters

Features

• Notch Frequency to 43.5GHz
• Small size and excellent performances
• Low passband insertion loss and high rejection
• Broad, high frequency pass and stopbands
• Offering full range of 5G NR standard band notch Filters
• Customized Products Available

  • Product Guide
  • Product Description
Here just list out part of catalogs as follows for reference. Customized products are available, please consult with Kete.
Part Number Notch Frequency Insertion Loss  Max. VSWR Max. Attenuation Min. Pass Band 1   Pass Band 2
KTF-430-BS 400-460MHz 2.00dB 2 : 1 60dB DC-390MHz 480-1500MHz
KTF-725-BS 703-748MHz 2.00dB 2 : 1 60dB DC-688MHz 763-1800MHz
KTF-753-BS 703-803MHz 2.00dB 2 : 1 45dB DC-693MHz 813-2000MHz
KTF-751-BS 746-756MHz 2.00dB 2 : 1 40dB DC-731MHz 771-2000MHz
KTF-680-BS 663-698MHz 2.00dB 2 : 1 50dB DC-651MHz 710-2000MHz
KTF-707-BS 699-716MHz 2.00dB 2 : 1 40dB DC-684MHz 729-2000MHz
KTF-780-BS 758-803MHz 2.00dB 2 : 1 40dB DC-743MHz 818-1800MHz
KTF-782-BS 777-787MHz 2.00dB 2 : 1 45dB DC-762MHz 802-2000MHz
KTF-831-BS 814-849MHz 1.50dB 2 : 1 45dB DC-799MHz 864-2000MHz
KTF-836-BS 824-849MHz 2.00dB 2 : 1 40dB DC-804MHz 869-1800MHz
KTF-847-BS 832-862MHz 2.00dB 2 : 1 40dB DC-821MHz 897-1800MHz
KTF-881-BS 869-894MHz 1.50dB 2 : 1 40dB DC-854MHz 909-2000MHz
KTF-898-BS 880-915MHz 1.50dB 2 : 1 40dB DC-860MHz 935-2000MHz
KTF-915-BS 902-928MHz 2.00dB 2 : 1 45dB DC-896MHz 934-2500MHz
KTF-940-BS 921-960MHz 2.00dB 2 : 1 40dB DC-911MHz 970-1800MHz
KTF-948-BS 935-960MHz 2.00dB 2 : 1 40dB DC-925MHz 970-1600MHz
KTF-1500-BS 1400-1600MHz 2.00dB 2 : 1 60dB DC-1340MHz 1660-5000MHz
KTF-1474-BS 1452-1496MHz 2.00dB 2 : 1 40dB DC-1437MHz 1511-3500MHz
KTF-1702-BS  1695-1710MHz 2.50dB 2 : 1 80dB DC-1685MHz 1720-5000MHz
KTF-1745-BS 1710-1780MHz 2.00dB 2 : 1 40dB DC-1695MHz 1795-3000MHz
KTF-1900-BS 1800-2000MHz 2.00dB 2 : 1 40dB DC-1750MHz 2050-3000MHz
KTF-1842-BS 1805-1880MHz 2.00dB 2 : 1 60dB DC-1785Hz 1900-6000MHz
KTF-1882-BS 1850-1915MHz 2.00dB 2 : 1 45dB DC-1835MHz 1930-4200MHz
KTF-1900M-BS 1880-1920MHz 2.00dB 2 : 1 40dB DC-1865MHz 1935-3000MHz
KTF-1950-BS 1920-1980MHz 2.00dB 2 : 1 40dB DC-1900MHz 2010-3000MHz
KTF-1960-BS 1930-1990MHz 2.00dB 2 : 1 40dB DC-1915MHz 2005-5000MHz
KTF-2132-BS 2110-2155MHz 1.80dB 2 : 1 40dB DC-2095MHz 2170-4200MHz
KTF-2140-BS 2110-2170MHz 2.00dB 2 : 1 60dB DC-2090MHz 2190-6000MHz
KTF-2155-BS 2110-2200MHz 2.00dB 2 : 1 40dB DC-2095MHz 2215-4200MHz
KTF-2400-BS  2200-2600MHz 2.50dB 2 : 1 50dB DC-2150MHz 2650-8000MHz
KTF-2350-BS  2300-2400MHz 2.50dB 2 : 1 60dB DC-2285MHz 2415-3000MHz
KTF-2350M-BS  2300-2400MHz 2.00dB 2 : 1 80dB DC-2273MHz 2427-6000MHz
KTF-2442-BS 2400-2485MHz 2.00dB 1.5 : 1 40dB DC-2375MHz 2510-5500MHz
KTF-2450-BS 2400-2500MHz 2.00dB 2 : 1 50dB DC-2170MHz 3000-18000MHz
KTF-2535-BS 2500-2570MHz 3.00dB 2 : 1 40dB DC-2485MHz 2585-4000MHz
KTF-2595-BS 2570-2620MHz 3.00dB 2 : 1 40dB DC-2555MHz 2635-4000MHz
KTF-2655-BS 2620-2690MHz 2.00dB 2 : 1 40dB DC-2605MHz 2705-4200MHz
KTF-3550-BS 3300-3800MHz 3.00dB 2 : 1 40dB DC-3270MHz 3830-8000MHz
KTF-3575-BS 3300-3850MHz 3.00dB 2 : 1 40dB DC-3270MHz 3880-8000MHz
KTF-3575M-BS 3300-3850MHz 2.00dB 2 : 1 70dB DC-3200MHz 4300-6500MHz
KTF-3500-BS 3400-3600MHz 2.00dB 2 : 1 45dB DC-3370MHz 3630-8000MHz
KTF-3625-BS  3550-3700MHz 3.00dB 2 : 1 80dB DC-3520MHz 3730-8000MHz
KTF-3700-BS 3600-3800MHz 2.00dB 2 : 1 45dB DC-3570MHz 3830-8000MHz
KTF-4025-BS 3850-4200MHz 3.00dB 2 : 1 40dB DC-3820MHz 4230-8000MHz
KTF-4700-BS 4400-5000MHz 3.00dB 2 : 1 40dB DC-4370MHz 5030-8000MHz
KTF-4700M-BS 4400-5000MHz 3.00dB 2.5 : 1 80dB DC-4340MHz 5060-8000MHz
KTF-5200-BS 5150-5250MHz 3.00dB 2 : 1 80dB DC-5125MHz 5275-8000MHz
KTF-5500-BS 5150-5850MHz 3.00dB 2 : 1 50dB DC-5000MHz 6000-18000MHz
KTF-5537-BS 5150-5925MHz 2.00dB 2 : 1 50dB DC-5000MHz 6125-8000MHz
KTF-5300-BS 5250-5350MHz 3.00dB 2 : 1 80dB DC-5225MHz 5375-8000MHz
KTF-5650-BS 5400-5900MHz 2.00dB 2 : 1 40dB DC-5100MHz 6200-12000MHz
KTF-5597-BS 5470-5725MHz 3.00dB 2 : 1 80dB DC-5420MHz 5775-8000MHz
KTF-5787-BS 5725-5850MHz 3.00dB 2 : 1 80dB DC-5695MHz 5880-8000MHz
KTF-6175-BS 5925-6425MHz 3.00dB 2 : 1 40dB DC-5875MHz 6475-18000MHz
KTF-6475-BS 6425-6525MHz 3.00dB 2 : 1 40dB DC-6375MHz 6575-18000MHz
KTF-6700-BS 6525-6875MHz 3.00dB 2 : 1 40dB DC-6475MHz 6925-18000MHz
KTF-7000-BS 6875-7125MHz 3.00dB 2 : 1 40dB DC-6825MHz 7175-18000MHz
KTF-24125-BS 24000-24250MHz 3.00dB 2 : 1 40dB DC-23000MHz 25250-40000MHz
KTF-25875-BS 24250-27500MHz 3.00dB 2 : 1 40dB DC-22750MHz 29000-50000MHz
KTF-28000-BS  26500-29500MHz 3.00dB 2 : 1 40dB DC-25000MHz 31000-50000MHz
KTF-27925-BS  27500-28350MHz 3.00dB 2 : 1 40dB DC-26300MHz 29550-50000MHz
KTF-38500-BS 37000-40000MHz 3.00dB 2 : 1 40dB DC-35500MHz 41500-50000MHz
KTF-41500-BS 39500-43500MHz 3.00dB 2 : 1 40dB DC-38000MHz 45000-50000MHz
Notch filter known also as a band stop filter or band stop filter, blocks and rejects frequencies that lie between its two cut-off frequency points passes all those frequencies either side of this range. It is another type of frequency selective circuit that functions in exactly the opposite way to the Band Pass Filter we looked at before. Band-stop filter can be represented as a combination of low-pass and high-pass filters if the bandwidth is wide enough that the two filters do not interact too much.

Typical Applications of the Notch Filter & Band Stop
• Satellite Systems
• 5G Test & Instrumentation& EMC
• Telecom Infrastructures
• Microwave Links
