Features

• Low VSWR and High Isolation
• Ultra Broadband
• Excellent Phase and Amplitude Balance
• Wilkinson Structure, Coaxial Connectors
• Offer high isolation, blocking signal cross-talk between output ports

  • Product Guide
  • Product Description
Here just list out part of catalogs as follows for reference. Customized products are available, please consult with Kete.
Part Number Ways Freq.Range (GHz) Insertion Loss (dB) Max. Isolation (dB) Min. VSWR Max. Amp. Balance (dB) Max. Phase Balance (Deg.) Max. Input Power (W) Connector PDF
KTPD-M0730-8-SMAF 8 0.7-3 2.00  18 1.50 : 1 ±0.50 ±5° 30 SMA-F
KTPD-M0540-8-SMAF 8 0.5-4 1.80  18 1.50 : 1 ±0.50 ±5° 30 SMA-F
KTPD-M0560-8-SMAF 8 0.5-6 2.50  18 1.50 : 1 ±0.50 ±5° 20 SMA-F
KTPD-M0580-8-SMAF 8 0.5-8 3.00  18 1.50 : 1 ±0.50 ±5° 20 SMA-F
KTPD-M1040-8-SMAF 8 1-4 1.50  20 1.50 : 1 ±0.50 ±5° 30 SMA-F
KTPD-M2040-8-SMAF 8 2-4 1.00  20 1.50 : 1 ±0.40 ±4° 30 SMA-F
KTPD-M2080-8-SMAF 8 2-8 1.60  18 1.50 : 1 ±0.50 ±5° 30 SMA-F
KTPD-M10124-8-SMAF 8 1-12.4 3.50  15 1.80 : 1 ±0.80 ±10° 30 SMA-F
KTPD-M05180-8-SMAF 8 0.5-18 6.00  13 2.00 : 1 ±0.80 ±12° 30 SMA-F
KTPD-M10180-8-SMAF 8 1-18 4.00  15 2.00 : 1 ±0.50 ±10° 30 SMA-F
KTPD-M20180-8-SMAF 8 2-18 3.00  16 1.80 : 1 ±0.80 ±10° 30 SMA-F
KTPD-M60180-8-SMAF 8 6-18 1.80  18 1.80 : 1 ±0.50 ±8° 30 SMA-F
KTPD-M60400-8-SMAF 8 6-40 3.50  16 2.00 : 1 ±0.50 ±10° 10 SMA-F

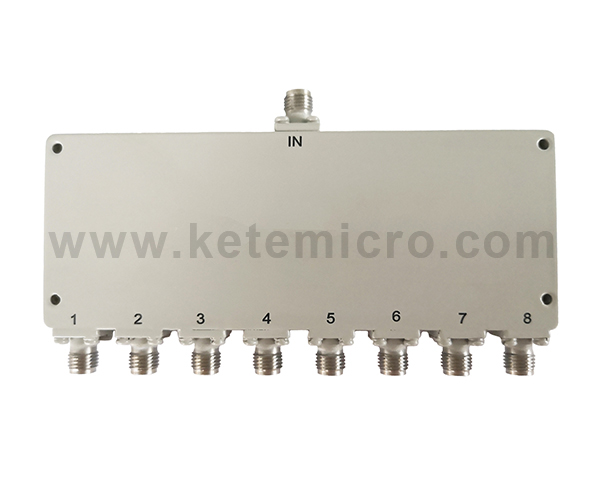

Kete’s 8 ways power divider can split an input signal into eight equal and identical signals. It can also be used as a power combiner, where the common port is the output and the eight equal power ports are used as the inputs. The eight way Power dividers are widely used in wireless systems to divide power across equally across the system. The eight way power dividers are available in narrowband and broadband configurations, covering frequencies from DC-40GHz. They are designed to handle from 20 to 30 watts input power in a 50-ohm transmission system. The RF Power divider and Power combiner is an equal power-distribution device and low insertion loss passive component. It can be applied to indoor or outdoor signal distribution system, featured as dividing one input signal into two or multiple signal outputs with the same amplitude.
