SMD Resistors AlN

Part Number	Power Rating (W)	Dimensions (mm)								Outline Drawing
		W	L	T	LA	LB	LC	WA	WB
SRXXN-1-802A	1	0.5	1.0	0.25	0.3	/	/	0.5	/	Figure A
SRXXN-2-002A	2	0.8	1.6	0.38	0.4	/	/	0.8	/	Figure A
SRXXN-2-201A	2	1.27	2.54	0.6	0.8	/	/	0.8	/	Figure A
SRXXN-5-302A	5	2.5	5.0	1.0	1.25	/	/	2.0	/	Figure A
SRXXN-10-339A	10	2.5	5.0	1.0	0.75	/	/	2.5	/	Figure A
SR10A-0.2-101B	0.2	1.5	3.0	0.6	1.0	/	/	/	/	Figure B
SRXXN-400-705B	400	12.7	12.7	2.0	1.2	/	/	/	2.7	Figure B
SRXXN-800-401B	800	25.4	26.4	1.5	1.7	/	/	/	3.0	Figure B
SRXXN-10-303C	10	2.5	5.0	1.0	1.0	0.6	1.8	2.5	/	Figure C
SRXXN-25-340C	25	2.5	5.0	1.0	0.5	0.5	3.0	2.5	/	Figure C

 * Customized products are available, please consult with Kete.

SMD Resistors BeO

Electrical Features
• Resistance: 100Ω standard (10Ω~1000Ω available)
• Resistive Tolerance: ±5% standard; ±3%, ±2%, ±1% available
• Substrate Material: Beryllium Oxide (BeO)
• Power Rating: 0.2W-10W
• Operating Temperature: -55℃ to ＋150℃
• Temperature Coefficient: ±150ppm/℃
• Installation Method: Tin soldering

Part Number	Resistance (Ω)	Substrate	Power Rating (W)	Capacitance (pF)	Dimensions (mm)
					L	W	T
SRXXN-0.2-201A	10-1000	AlN	0.2	0.3	0.6	0.3	0.25
SRXX-1-301A	10-1000	BeO	1	0.3	1.0	0.5	0.38
SRXX-2-201A	10-1000	BeO	2	0.3	2.0	1.25	0.38
SRXX-5-302A	10-1000	BeO	5	1	5.0	2.5	1.0
SRXX-10-303C	10-1000	BeO	10	1.2	5.0	2.5	1.0

 * Customized products are available, please consult with Kete.

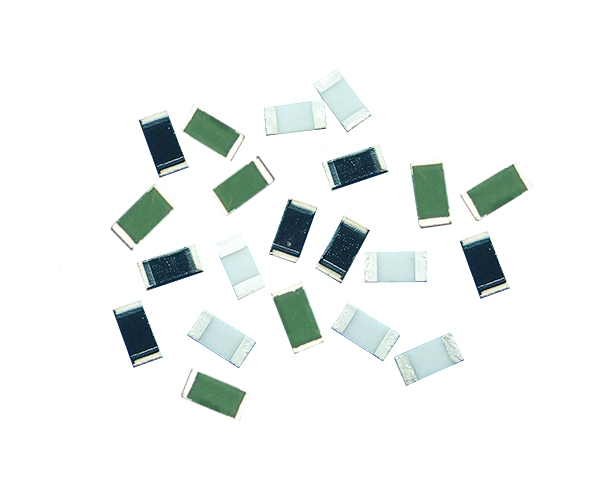

High Power resistors are used as balance resistors on allotter or as absorption edge in hybrid and coupler. They feature broadband frequency, low VSWR, excellent capacity in anti-pulse and anti-burnout etc.
SMD serial high power resistors rated power 5W-800W. The impedance range 4Ω~ 1000Ω available, standard resistor 100Ω.The substrate materials are available with Beryllium Oxide, Aluminum Nitride and Aluminum Oxide. All resistive components are in compliance with RoHS Compliant. The applications of high power resistor include splitters, combiners, power divider, termination etc. If your specific requirement is not covered in the following table, please consult with Kete Microwave.
