2-WayHome > Products > RF Power Dividers

Features

• Low insertion loss and return loss
• High isolation, blocking signal cross-talk between output ports
• Offer Excellent amplitude and Phase Balance
• RF Power dividers can be used as combiners or splitters

  • Product Guide
  • Product Description
Here just list out part of catalogs as follows for reference. Customized products are available, please consult with Kete.
Part Number Ways Freq.Range (GHz) Insertion Loss (dB) Max. Isolation (dB) Min. VSWR Max. Amp. Balance (dB) Max. Phase Balance (Deg.) Max. Input Power (W) Connector PDF
KTPD-M013737-2-SMAF 2 0. 137-3.7 2.00 18 1.30 : 1 ±0.30 ±3° 20 SMA-F
KTPD-M069827-2-SMAF 2 0.698-2.7 0.50 20 1.25 : 1 ±0.20 ±3° 50 SMA-F
KTPD-M0540-2-SMAF 2 0.5-4 0.70 20 1.30 : 1 ±0.20 ± 2° 30 SMA-F
KTPD-M0560-2-SMAF 2 0.5-6 1.00  20 1.40 : 1 ±0.30 ±3° 20 SMA-F
KTPD-M0580-2-SMAF 2 0.5-8 1.50  20 1.50 : 1 ±0.30 ±3° 20 SMA-F
KTPD-M1040-2-SMAF 2 1-4 0.50  20 1.30 : 1 ±0.30 ± 2° 30 SMA-F
KTPD-M2040-2-SMAF 2 2-4 0.40  20 1.20 : 1 ±0.20 ± 2° 30 SMA-F
KTPD-M2060-2-SMAF 2 2-6 0.50  20 1.30 : 1 ±0.30 ±3° 30 SMA-F
KTPD-M2080-2-SMAF 2 2-8 0.60  20 1.30 : 1 ±0.20 ± 2° 30 SMA-F
KTPD-M10124-2-SMAF 2 1- 12.4 1.20  18 1.40 : 1 ±0.30 ±4° 30 SMA-F
KTPD-M60180-2-SMAF 2 6-18 0.80  18 1.40 : 1 ±0.30 ±6° 30 SMA-F
KTPD-M20180-2-SMAF 2 2-18 1.00  16 1.50 : 1 ±0.30 ±5° 30 SMA-F
KTPD-M10180-2-SMAF 2 1-18 1.20  16 1.50 : 1 ±0.30 ±5° 30 SMA-F
KTPD-M05180-2-SMAF 2 0.5- 18 1.60  16 1.60 : 1 ±0.50 ±4° 30 SMA-F
KTPD-M270320-2-SMAF 2 27-32 1.00  18 1.50 : 1 ±0.40 ±4° 10 SMA-F
KTPD-M60400-2-SMAF 2 6-40 1.50  16 1.80 : 1 ±0.40 ±5° 10 SMA-F
KTPD-M180400-2-SMAF 2 18-40 1.20  16 1.60: 1 ±0.40 ±4° 20 SMA-F

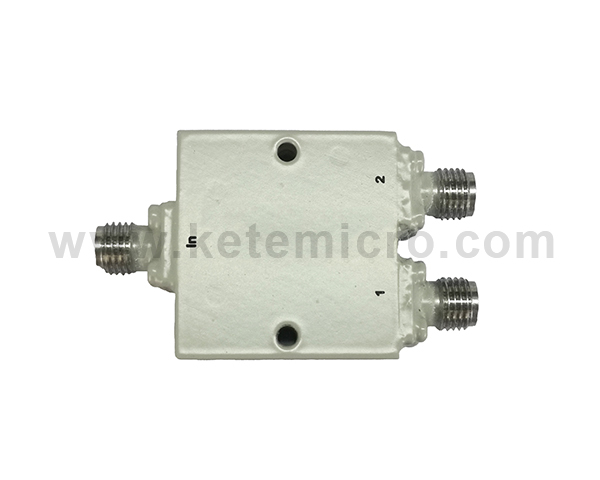

Kete’s 2 ways power divider/Splitter splits an input signal into two output signals with minimal losses. 2 Way Power dividers are widely used in wireless systems to divide power across equally across the system.
They are designed to handle from 10 to 30 watts input power in a 50-ohm transmission system. The microstrip or stripline type designs are utilized, and optimized for best performance.

If you are interested in these products, please you fill out the form below to get in contact with our Sales team
