Tab & Cover Terminations AlN

Part Number	Power Rating (W)	Freq.(GHz)	VSWR(Max.)	Dimensions (mm)							Outline Drawing
				L	W	T	LA	WA	TA	TB
TT50N-20-308A	20	DC-3	1.20:1	2.5	5.0	1.9	4.0	1.0	0.1	1.0	Figure A
TT50N-100-340A	100	DC-4	1.20:1	6.35	6.35	1.9	6.0	1.0	0.1	1.0	Figure A
TT50N-150-521A	150	DC-3	1.25:1	5.7	8.9	1.0	6.0	1.0	0.1	/	Figure A
TT50N-150-701A	150	DC-3	1.20:1	9.5	6.35	1.5	3.2	1.0	0.1	/	Figure A
TT50N-500-732A	500	DC-2.5	1.30:1	12.7	12.7	1.5	8.0	2.4	0.15	/	Figure A
TT50N-800-401A	800	DC-1	1.20:1	26.4	25.4	2.0	8.0	2.4	0.15	/	Figure A
TT50N-60-318B	60	DC-4	1.20:1	6.35	6.35	1.2	6.0	1.0	0.1	/	Figure B
TT50N-100-503B	100	DC-3	1.25:1	5.7	8.9	1.2	6.0	1.0	0.1	/	Figure B
TT50N-250-525B	250	DC-3	1.20:1	9.5	9.5	1.2	6.0	1.4	0.1	/	Figure B
TT50N-300-604B	300	DC-4	1.25:1	10.0	10.0	1.5	6.0	1.4	0.1	/	Figure B

* Customized products are available, please consult with Kete.

Tab & Cover Termination BeO

Electrical Features
• Nominal Impedance: 50 Ω
• Resistive Tolerance: ±5% standard; ±3%, ±2%, ±1% available
• Substrate Material: Beryllium Oxide (BeO)
• Power Rating: 10W-800W
• Operating Temperature: -55℃ to ＋150℃
• Temperature Coefficient: ±150ppm/℃
• Installation Method: It’s tin soldering on the back, the lead wire can be welded with a soldering iron.

Part Number	Substrate	Power Rating (W)	Frequency Range (GHz)	VSWR (Max.)	Dimensions (mm)
					L	W	T
TT50-10-710A	BeO	10	DC-18	1.40 : 1	2.54	1.27	1.3
TT50-20-206A	BeO	20	DC-18	1.35 : 1	3.0	2.5	1.5
TT50-30-402A	BeO	30	DC-18	1.30 : 1	2.5	5.0	1.5
TT50-60-106A	BeO	60	DC-6	1.20 : 1	6.0	6.0	1.9
TT50-100-804A	BeO	100	DC-14	1.35 : 1	6.35	6.35	2.4
TT50-100-215A	BeO	100	DC-6	1.25 : 1	6.0	9.0	1.9
TT50-250-019A	BeO	250	DC-3	1.25 : 1	9.5	9.5	2.4
TT50-250-701A	BeO	250	DC-10.5	1.40 : 1	10.0	12.0	2.8
TT50-300-803A	BeO	300	DC-3.5	1.30 : 1	10.0	12.7	2.9
TT50-500-702A	BeO	500	DC-2	1.20 : 1	12.7	12.7	3.3
TT50-800-102A	BeO	800	DC-1	1.20 : 1	26.4	25.4	3.3

* Customized products are available, please consult with Kete.

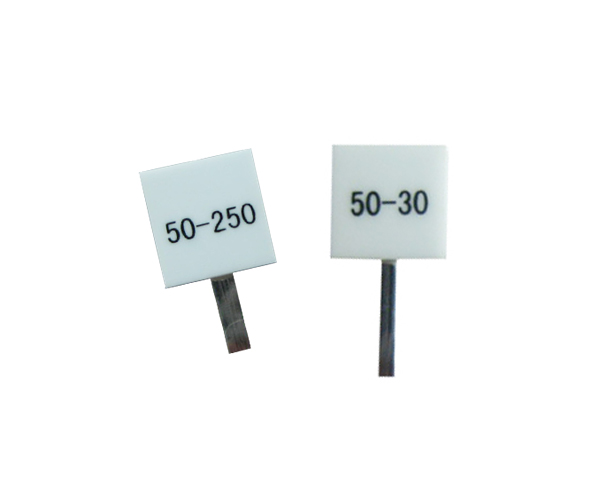

Kete Microwave manufacturers leaded terminations on AlN, BeO or Alumina. These leaded terminations are available in numerous sizes.TR serial high power resistors rated power 3W-500W, frequency range DC-18GHz. The impedance range 4Ω~ 400Ω available, standard resistor 50Ω. These RF terminations are designed and manufactured with high quality materials to guarantee good and stable performance.
The applications of high power resistor include base station, power amplifier, isolator and circulator, splitters, combiners, radar system etc.
