Tab & Cover Resistors AlN

Part Number	Power Rating (W)	Dimensions (mm)							Outline Drawing
		L	W	T	LA	WA	TA	TB
TRXXN-20-301A	20	5.0	2.5	1.9	4.0	1.0	1.0	0.1	Figure A
TRXXN-60-101A	60	6.0	6.0	1.9	6.0	1.0	1.0	0.1	Figure A
TRXXN-100-502A	100	5.7	8.9	1.9	4.0	1.0	1.0	0.1	Figure A
TRXXN-150-315A	150	6.35	9.5	1.9	6.0	1.4	1.0	0.15	Figure A
TRXXN-250-009A	250	9.5	9.5	2.4	6.0	2.4	1.5	0.1	Figure A
TRXXN-400-705A	400	12.7	12.7	3.2	8.0	2.4	1.5	0.15	Figure A
TRXXN-800-401A	800	26.4	25.4	1.5	8.0	6.4	1.5	0.15	Figure A

* Customized products are available, please consult with Kete.

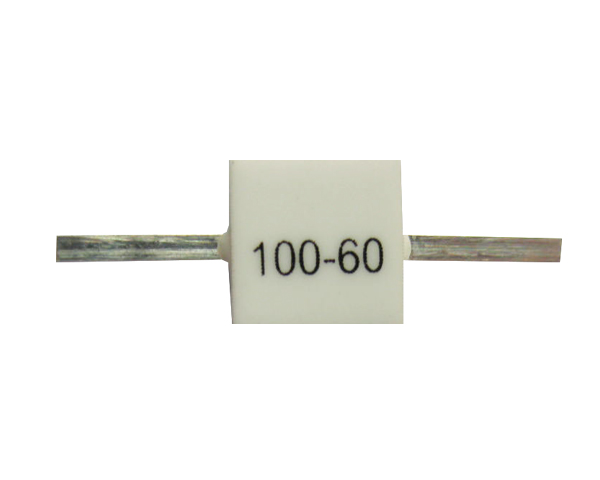

Tab & Cover Resistors BeO

Electrical Features
• Resistance: 100Ω standard (10Ω~1000Ω available)
• Resistive Tolerance: ±5% standard; ±3%, ±2%, ±1% available
• Substrate Material: Beryllium Oxide (BeO)
• Power Rating: 30W-250W
• Operating Temperature: -55℃ to ＋150℃
• Temperature Coefficient: ±150ppm/℃
• Installation Method: It’s soldered on the back, the lead wire can be welded with a soldering iron.

Part Number	Resistance (Ω)	Substrate	Power Rating (W)	Capacitance (pF)	Dimensions (mm)
					L	W	T
TRXX-30-303A	10-1000	BeO	20	1.0	5.0	2.5	1.9
TRXX-60-102A	10-1000	BeO	60	1.9	6.0	6.0	1.9
TRXX-100-208A	10-1000	BeO	100	3.6	6.0	9.0	1.9
TRXX-150-302A	10-1000	BeO	150	4.0	9.5	6.35	1.9
TRXX-250-504A	10-1000	BeO	250	4.5	9.5	9.5	1.9

* Customized products are available, please consult with Kete.

High Power resistors are used as balance resistors on allotter or as absorption edge in hybrid and coupler. They feature broadband frequency, low VSWR, excellent capacity in anti-pulse and anti-burnout etc.
TR serial high power resistors rated power 5W-800W. The impedance range 4Ω~ 400Ω available, standard resistor 100Ω.These RF resistors are designed and manufactured with high quality materials to guarantee good and stable performance. The substrate materials are available with Beryllium Oxide (BeO), Aluminum Nitride (AlN) or Aluminum Oxide (Al2O3). The applications of high power resistor include base station, power amplifier, isolator and circulator, splitters, combiners, radar system etc. If your specific requirement is not covered in the following table, please consult with Kete Microwave.
