Broadband Coaxial Isolators

Part Number	Working Frequency (GHz)	Insertion Loss (dB)Max.	Isolation (dB) Min.	VSWR Max.	Reverse Power (W)	Connector Type	Dimensions LxWxH (mm)	PDF
KTBI-201J	1-2	0.7	16	1.40	10	SMA/N	70×80×21
KTBI201-C2	1.35-2.70	0.6	17	1.35	10	SMA	50.8×(49.5+4.5)×19
KTBI301A-10	2-4	0.6	18	1.40	10	SMA/N	32×(34+4.5)×18
KTBI-501B	2-6	1.2	15	1.50	10	SMA/N	60×42×19
KTBI-501B	2-8	1.5	12	1.80	10	SMA/N	60×42×19
KTBI-501H	3-6	0.6	17	1.40	10	SMA	25.4×(27.5+7)×13
KTBI-601K	4-8	0.6	18	1.30	10	SMA	20×(26+6)×14

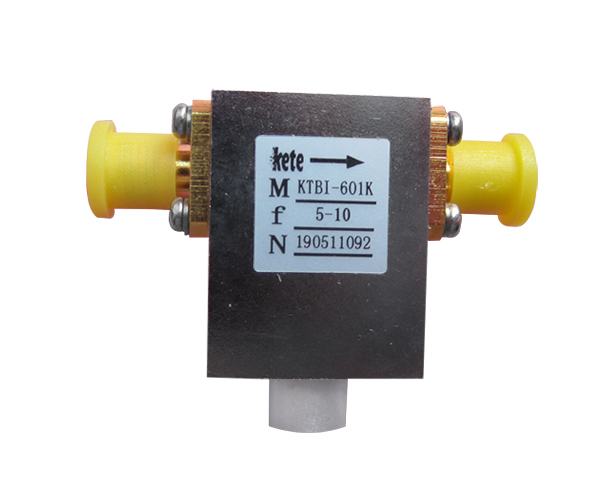

KTBI-601K	5-10	0.6	18	1.30	10	SMA	20×26×14
KTBI-901K	6-12	0.6	18	1.40	10	SMA	16×26×13
KTBI-801F8	8-12	0.5	20	1.25	10	SMA	12×20×13
KTBI-801F8	10-15	0.5	20	1.25	10	SMA	12×20×13
KTBI-801F8	12-18	0.6	18	1.35	10	SMA	12×20×13
KTBI-1201K	6-18	1.5	10	1.90	10	SMA	19×(22+5)×13
KTBI-1201A	8-18	0.8	17	1.40	10	SMA	15×23×13

Broadband Drop-in Isolators

Part Number	Working Frequency (GHz)	Insertion Loss (dB)Max.	Isolation (dB) Min.	VSWR Max.	Reverse Power (W)	Connector Type	Dimensions L×W×H (mm)	PDF
KTBI-302D	2-4	0.6	18	1.40	10	TAB	31.7×31.7×11.6
KTBI-402H2	4-8	0.6	14	1.50	10	TAB	14.0×22.0×9.0
KTBI-1002K	8-12	0.6	18	1.30	10	TAB	10.0×17.0×6.5
KTBI-1002K	10-15	0.6	18	1.30	10	TAB	10.0×17.0×6.5
KTBI-1202	12-18	0.6	17	1.40	10	TAB	9.0×14.0×6.5

Notes:
1) All the specifications above are at room temperature (25℃±5℃).
2) Standard P/N is Clockwise (CW) Rotation. Add letter “R” at the end to P/N for a Counter Clockwise (CCW) Rotation.
3) The connector SMA/N is removable into drop-in type.
4) Product information are subject to change without notice.

Kete supplies a complete line of broadband isolators with SMA and N connectors from 1GHz to 18GHz, removable SMA/N connectors (TAB), the full bandwidth. These devices are manufactured with high quality materials to assure optimum performance over a long period of time. The devices have a temperature range from -40℃ to +70℃. The delivery time is short and prompt. All components are available RoHS Compliant. They are widely used in remote sensing, telemetry, electronic counter measures, radar and communications etc. Customized products are available. If your specific requirement is not covered in the following table, please directly contact with Kete Microwave.
