Flange Resistors AlN

Part Number	Power Rating (W)	Dimensions (mm)											Outline Drawing
		L	W	T	WA	WB	LA	WC	TA	TB	TC	A
FRXXN-10-303A-S-J	10	5.0	7.7	3.5	5.1	2.5	4.0	1.0	2.6	1.5	0.15	3.1	A-1
FRXXN-10-702A-S-J	10	4.0	9.0	3.0	7.0	4.0	4.0	1.0	2.1	1.0	0.15	2.0	A-1
FRXXN-20-303A-S-J	20	5.0	7.7	3.5	5.1	2.5	4.0	1.0	2.6	1.5	0.15	3.1	A-1
FRXXN-60-106A-S-J	60	6.0	13.0	3.5	10.0	6.0	6.0	1.0	2.6	1.5	0.15	3.2	A-1
FRXXN-60-318A-S-J	60	6.35	13.0	3.5	10.0	6.35	6.0	1.0	2.6	1.5	0.15	3.2	A-1
FRXXN-100-502A-D-J	100	5.7	20	3.5	14.2	8.9	4.0	1.0	2.6	1.5	0.1	3.2	A-2
FRXXN-100-112A-D-J	100	6.0	20	3.6	14.2	6.0	4.5	1.0	2.6	1.6	0.15	3.2	A-2
FRXXN-150-307A-D-J	150	9.5	22.1	3.5	14.2	6.35	6.0	1.4	2.6	1.5	0.15	4.1	A-2
FRXXN-250-009A-D-J	250	9.5	24.8	5.5	18.4	9.5	6.0	2.4	4.6	3.0	0.1	3.5	A-2
FRXXN-400-705A-D-J	400	12.7	32.0	6.5	22.0	12.7	8.0	2.4	5.3	3.2	0.15	4.0	A-2
FRXXN-800-401A-D-J	800	26.4	48.3	6.5	40.0	25.4	8.0	6.4	5.0	3.2	0.15	4.2	A-2

* Customized products are available, please consult with Kete.

Flange Resistors BeO

Electrical Features
• Resistance: 100Ω standard (10Ω ~ 1000Ω available)
• Resistive Tolerance: ±5% standard; ±3%, ±2%, ±1% available
• Substrate Material: Beryllium Oxide (BeO)
• Power Rating: 30W-3000W
• Operating Temperature: -55℃ to ＋150℃
• Temperature Coefficient: ±150ppm/℃
• Installation method: The flange is fixed with screws and must be in close contact with the heat sink.
　　　　　　　　　　The lead wire can be welded with a soldering iron.

Part Number	Resistance(Ω)	Substrate	Power Rating (W)	Capacitance(pF)	Dimensions (mm)
					L	W	T
FRXX-30-303A-S-R-J	10-1000	BeO	30	1	5.0	7.7	3.5
FRXX-60-102A-S-R-J	10-1000	BeO	60	1.9	6.0	13.0	3.5
FRXX-100-208A-D-M-J	10-1000	BeO	100	3.6	6.0	20.0	3.5
FRXX-150-302A-D-M-J	10-1000	BeO	150	4	9.5	22.1	3.5
FRXX-250-504A-D-M-J	10-1000	BeO	250	4.5	9.5	24.8	5.0
FRXX-800-106A-D-M-J	10-1000	BeO	800	23	26.4	48.3	6.5
FRXX-3000-801A-D-M-J	100	BeO	3000	46*2	48.0	87.8	10.0

* Customized products are available, please consult with Kete.

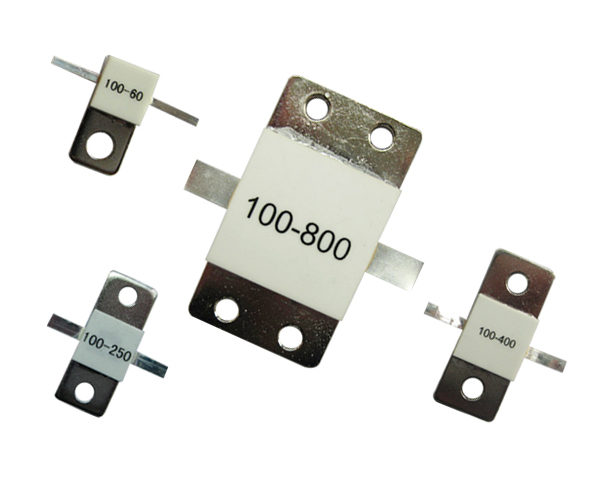

High Power resistors are used as balance resistors on allotter or as absorption edge in hybrid and coupler. They feature broadband frequency, low VSWR, excellent capacity in anti-pulse and anti-burnout etc.
FR serial high power resistors rated power 2W-1000W, frequency range DC-18GHz. The impedance range 5Ω~ 400Ω available, standard resistor 100Ω.The substrate materials are available with Beryllium Oxide (BeO), Aluminum Nitride (AlN) or Aluminum Oxide (Al2O3). All resistive components are RoHS Compliant available. The applications of high power resistor include splitters, combiners, power divider, isolators, power amplifier, radar system etc. If your specific requirement is not covered in the following table, please consult with Kete Microwave.
