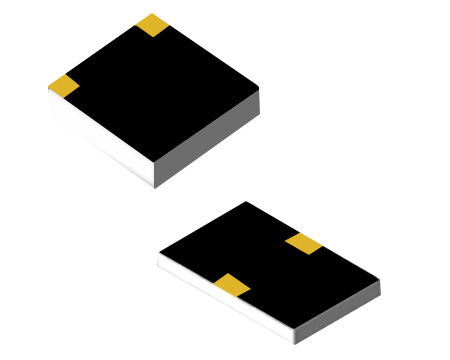

SMD Attenuators AlN

Part Number	Power Rating (W)	Atten. Value(dB)	Freq.(GHz)	VSWR (Max.)	Dimensions(mm)							Outline Drawing
					L	W	T	WA	WB	LA	LB
SA10N-20-337A	10	20	DC-3	1.35 :1	5.0	2.5	1.0	2.3	2.3	0.2	0.2	Figure A
SA10N-XX-601A	10	1-30	DC-5	1.25 :1	5.0	2.5	0.635	0.7	0.78	1.0	0.7	Figure A
SA20N-30-313A	20	30	DC-4	1.25 :1	5.0	2.5	0.76	0.70	0.78	1.0	0.7	Figure A
SA60N-30-301A	60	30	DC-3	1.35 :1	6.35	6.35	1.0	1.1	1.1	1.0	1.0	Figure A
SA100N-20-513A	100	20	DC-4	1.30 :1	5.7	8.9	1.0	1.2	1.2	1.0	1.0	Figure A
SA100N-30-523A	100	30	DC-4	1.25 :1	5.7	8.9	1.0	1.5	1.5	1.0	1.0	Figure A
SA100N-20-502B	100	20	DC-3	1.20 :1	5.7	8.9	1.0	1.5	1.5	1.0	1.0	Figure B
SA100N-30-501B	100	30	DC-3	1.20 :1	5.7	8.9	1.0	1.2	1.2	1.0	1.0	Figure B
SA150N-20-327B	150	20	DC-3	1.25 :1	6.35	9.5	1.0	1.4	1.40	1.0	1.0	Figure B
SA150N-30-371B	150	30	DC-1	1.25 :1	6.35	9.5	1.0	1.3	1.0	0.75	1.0	Figure B
SA250N-30-007B	250	30	DC-3	1.25 :1	9.5	9.5	1.0	1.3	1.0	0.75	1.0	Figure B

* Customized products are available, please consult with Kete.

SMD Attenuators Beo

Electrical Features

• Input Impedance: 50Ω

• Power Rating: 5W-50W

• Substrate Material: Beryllium Oxide (BeO)

• Frequency Range: DC-13GHz

• Attenuation Value: 1-30dB

• Attenuation Tolerance: 1-10dB ±0.6dB / 11-20dB ±0.8dB / 21-30dB ±1.0dB

• Operating Temperature: -55℃ to ＋150℃

• Temperature Coefficient: ±150ppm/℃

Part Number	Substrate	Power Rating(W)	Frequency Range (GHz)	Attenuation Value (dB)	VSWR (Max.)	Dimensions (mm)
						L	W	T
SA5-XX-201C	BeO	5	DC-13	1-20	1.30 :1	2.5	2.5	0.38
SA5-XX-303C	BeO	5	DC-3.5	1-30	1.35 :1	4.0	4.0	0.6
SA50-XX-108B	BeO	50	DC-6.2	1-30	1.35 :1	6.0	6.0	1.0

 * Customized products are available, please consult with Kete.

Kete Microwave manufacturers chip attenuators on Alumina, AlN or BeO in numerous sizes, terminal configurations. SA series Surface Mount attenuators rated power 2W-250W, frequency range DC-3GHz, attenuation value 0-30dB. These RF components are designed and manufactured with high quality materials to guarantee good and stable performance. Engineers are welcome to contact us and we will design a custom chip attenuator to your exact specifications.
