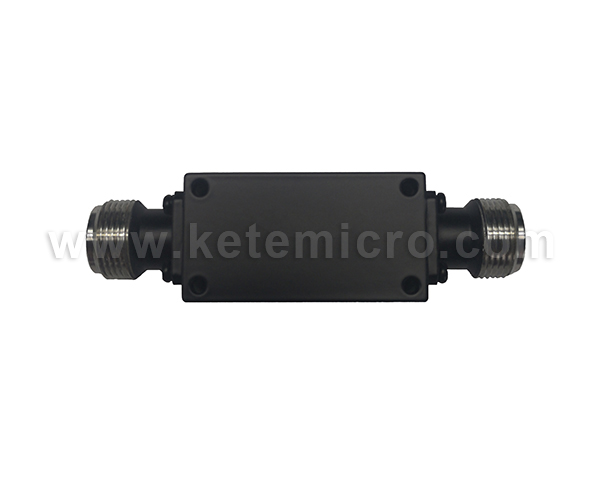

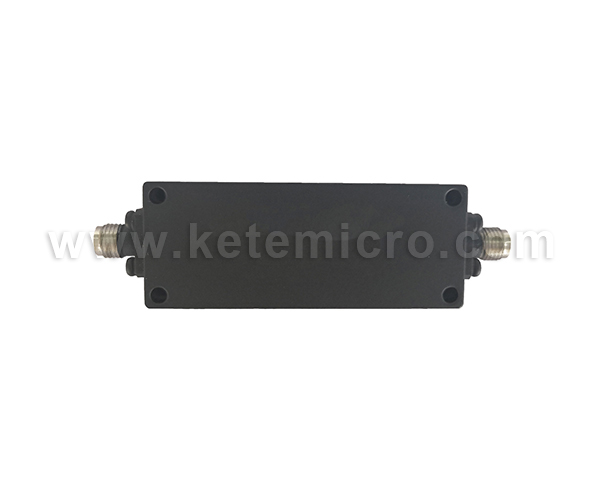

Low Pass FiltersHome > Products > RF Filters

Features

• Pass Band Frequency: DC-30GHz
• Broad, high frequency pass and stopbands
• Low passband insertion loss and high rejection
• Small size and excellent performances
• Customized Products Available

  • Product Guide
  • Product Description
Here just list out part of catalogs as follows for reference. Customized products are available, please consult with Kete.
Part Number Pass Band Attenuation Min. Insertion Loss Max. VSWR  Max.
KTF-250-LP DC-0.5GHz 40dB@0.6-0.9GHz 2.0dB 1.8 : 1
KTF-500-LP DC-1.0GHz 60dB@1.23-8GHz 1.5dB 1.8: 1
KTF-625-LP DC-1.25GHz 50dB@1.56-3.3GHz 1.0dB 1.5: 1
KTF-700-LP DC-1.40GHz 40dB@@1.484-11GHz 2.0dB 2 : 1
KTF-800-LP DC-1.60GHz 40dB@@1.696-11GHz 2.0dB 2 : 1
KTF-1000-LP DC-2.00GHz 50dB@2.6-6GHz 1.0dB 1.5: 1
KTF-1100-LP DC-2.2GHz 60dB@2.650-7GHz 1.5dB 1.5: 1
KTF-1350-LP DC-2.7GHz 50dB@4-8GHz 1.5dB 1.5: 1
KTF-1485-LP DC-2.97GHz 50dB@3.96-9.9GHz 1.0dB 1.5: 1
KTF-2100-LP DC-4.2GHz 40dB@4.452-21GHz 2.0dB 2 : 1
KTF2250-LP DC-4.5GHz 50dB@@6.0-16GHz 2.0dB 2 : 1
KTF-2575-LP DC-5.150GHz 50dB@@6.0-16GHz 2.0dB 2 : 1
KTF-2900-LP DC-5.8GHz 40dB@@6.148-18GHz 2.0dB 2 : 1
KTF-3000-LP DC-6.0GHz 70dB@@9.0-18GHz 2.0dB 2 : 1
KTF-4000-LP DC-8.0GHz 25dB@9.6GHz,55dB@15GHz 0.35dB 1.5 : 1
KTF-6000-LP DC-12.0GHz 25dB@14.4GHz,55dB@18GHz ≤0.4dB 1.7: 1
KTF-6800-LP DC-13.6GHz 25dB@22GHz,40dB@25.5-40GHz 0.8dB 1.5: 1
KTF-9000-LP DC-18.0GHz 25dB@21.6GHz,50dB@24.3GHz 0.6dB 1.8: 1
KTF-11800-LP DC-23.6GHz ≥25dB@27.7GHz , ≥40dB@33GHz 1.3dB 1.7: 1
Low pass filter has a direct connection from input to output, passing DC and all frequencies below some specified 3 dB cutoff frequency. After the 3 dB cutoff frequency the insertion loss increases dramatically and the filter (ideally) rejects all frequencies above this point. Physically realizable filters have ‘re-entry’ modes that limit the high frequency capability of the filter. At some higher frequency the rejection of the filter degrades, and higher frequency signals can appear at the output of the filter.

Applications of Low Pass Filters
• Low pass filters are used in radio receivers to avoid high-frequency interference
• In RF test laboratories, low pass filters are used to construct complex test setups
• Cut off high-frequency components in any system above its operating frequency range
• In RF transceivers, LPFs are used to significantly improve the low-frequency selectivity and signal quality
