Variable/Step AttenuatorsHome > Products > Coaxial Fixed Attenuators

Features

• Small Size
• High Accuracy
• High Stability
• Wide Operating Temperature

Variable/Step Attenuators Datasheet

  • Product Description
  • Product Guide
Variable/step attenuator can be used to adjust the power signal level continuously or by step within certain frequency range, they can also to adjust the test system's power as inset attenuator. It is small with high accuracy and high stability etc.
Kete Microwave offers a series of step/variable attenuators from 2W to 30W with N, SMA or BNC. These parts can work at operating temperature range from -20℃~+85℃. If there have questions or requests, please contact with Kete Microwave.
Part Number Frequency (GHz) Attenuation Range (dB) Attenuation
Step (dB)
Attenuation Accuracy (dB) VSWR (Max) Insertion Loss (dB) Connector Type Dimensions
 LxWxH (mm)
PDF
SA2-2.5-90-8-NF DC-2.5 0-90 in 1dB Steps 1,2,4,8,16, 20,20,20 ±2.5 1.30 3.5 NF-NF 164.1x30x20
SA2-2.7-10-4-SMAF 2.4-2.7 0-10 in 1dB Steps 1,2,4,8 ±2.5 1.50 3.0 SMAF-SMAF 91x29.6x20
SA2-2.7-20-5-SMAF 2.4-2.7 0-20 in 1dB Steps 1,2,4,8,10 ±2.5 1.50 3.50 SMAF-SMAF 103x30x20
SRA2-2.2-10-SMAF DC-2.2 0-10 / ±0.2 1.20 0.4 SMAF-SMAF Φ47.5x70
DRA2-2.7-30-SMAF DC-2.7 0-30 / ±0.5 1.30 0.6 SMAF-SMAF Φ38x120
SA10-2.5-30-3-NF DC-2.5 0-30 in 5dB Steps 5,10,15 ±1.4 1.40 2.0 NF-NF 110x36x20
SA10-3-20-5-NF DC-3 0-20 in 1dB Steps 1,2,4.8,10 ±3.0 1.50 3.5 NF-NF 122x30x20
SA10-2.5-120-6-NF 0.8-2.5 0-120 in 1dB Step 1,10,20,30, 30,30 ±3.0 1.30 3.0 NF-NF 136.1x30x20
SA10-2.5-120-5-NF 0.8-2.5 0-120 in 10dB Steps 10,20,30, 30,30 ±3.0 1.30 3.0 NF-NF 122x30x20

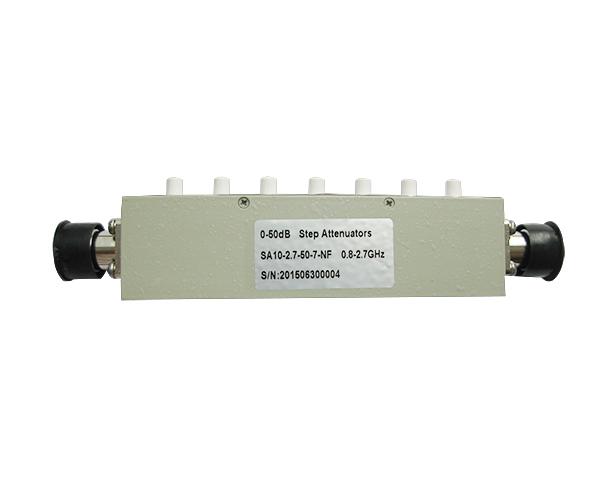

SA10-2.7-50-7-NF 0.8-2.7 0-50 in 1dB Step 1,2,4,8, 10,10,16 ±3.0 1.50 3.5 NF-NF 150.1x30x20
SA10-2.5-30-5-NF 0.8-2.5 0-30 in 1dB Steps 1,2,4,8,16 ±1.5 1.30 3.0 NF-NF 122x30x20
SA10-2.5-100-8-NF DC-2.5 0-100 in 1dB Steps 1,2,4,8,16, 20,20,30 ±3.0 1.40 3.5 NF-NF 164.1x30x20

If you are interested in these products, please you fill out the form below to get in contact with our Sales team
