N ConnectorHome > Products > Coaxial Fixed Terminations

Features

 • Nominal Impedance: 50 Ω
• Power Rating: 2W -1000W
• Frequency Range: DC-18GHz
• Operating Temperature: -55℃ to +125℃
• Connector Type: N (Male)


N Connector Datasheet

  • Product Description
  • Product Guide

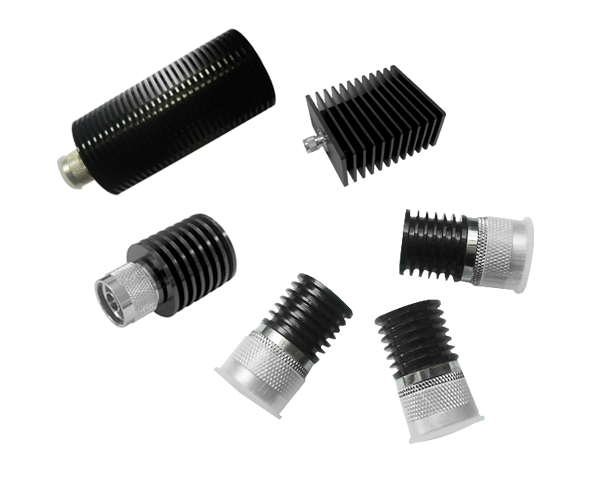

Coaxial fixed terminations absorb RF & microwave energy and are commonly used as dummy loads of antenna and transmitter. They are also used as match ports in many multiport microwave device such as circulators and directional couplers to make these ports which are not involved in the measurement be terminated in their characteristic impedance in order to ensure an accurate measurement.
CT serial high power coaxial fixed termination’s rated power 1W-1KW, wide frequency range DC-18GHz. The low VSWR, excellent capacity are main features.
Part Number Rated Power (W) Frequency Rang (GHz) VSWR (Max.) Connector Type Dimensions LxWxH (mm) PDF
CT50-2-N-3 2 DC-3 1.15 N(Male) Φ20×36
CT50-2-N-6 2 DC-6 1.20 N(Male) Φ20×36
CT50-5-N-3-A 5 DC-3 1.20 N(Male) Φ20×36
CT50-5-N-6-A 5 DC-6 1.25 N(Male) Φ20×36
CT50-5-N-6-B 5 DC-6 1.20 N(Male) Φ21x33.5
CT50-5-N-12.4-B 5 DC-12.4 1.25 N(Male) Φ21x33.5
CT50-5-N-18-B 5 DC-18 1.30 N(Male) Φ21x33.5
CT50-10-N-3-A 10 DC-3 1.20 N(Male) Φ30x48.5
CT50-10-N-6-A 10 DC-6 1.25 N(Male) Φ30x48.5
CT50-10-N-6-B 10 DC-6 1.20 N(Male) Φ17x53.3
CT50-10-N-12.4-B 10 DC-12.4 1.25 N(Male) Φ17x53.3
CT50-10-N-18-B 10 DC-18 1.30 N(Male) Φ17x53.3
CT50-25-N-6 25 DC-6 1.20 N(Male) Φ17x53.3
CT50-25-N-12.4 25 DC-12.4 1.30 N(Male) Φ17x53.3
CT50-25-N-18 25 DC-18 1.35 N(Male) Φ17x53.3
CT50-30-N-3 30 DC-3 1.15 N(Male) Φ45x90
CT50-30-N-6 30 DC-6 1.25 N(Male) Φ45x90
CT50-50-N-3-A 50 DC-3 1.15 N, 7/16 Φ64x09
CT50-50-N-6-A 50 DC-6 1.25 N, 7/16 Φ64x09
CT50-50-N-6-B 50 DC-6 1.20 N(Male) Φ45x125.5
CT50-50-N-12.4-B 50 DC-12.4 1.30 N(Male) Φ45x125.5
CT50-50-N-18-B 50 DC-18 1.35 N(Male) Φ45x125.5
CT50-50-N-3-C 50 DC-3 1.20 N, 7/16 80x60x60
CT50-50-N-6-C 50 DC-6 1.25 N, 7/16 80x60x60
CT50-100-N-3-A 5 DC-3 1.20 N, 7/16 120x100x60
CT50-100-N-6-A 5 DC-6 1.25 N, 7/16 120x100x60
CT50-100-N-6-B 100 DC-6 1.25 N(Male) 130x76x76
CT50-100-N-8-B 100 DC-8 1.30 N(Male) 130x76x76
CT50-100-N-10-B 100 DC-10 1.35 N(Male) 130x76x76
CT50-200-N-3-A 200 DC-3 1.20 N(Male) 200x142x65
CT50-200-N-6-A 200 DC-6 1.25 N, 7/16 200x142x65
CT50-200-N-6-B 200 DC-6 1.30 N, 7/16 200x142x65
CT50-200-N-8-B 200 DC-8 1.35 N, 7/16 200x142x65
CT50-200-N-10-B 200 DC-10 1.45 N, 7/16 200x142x65
CT50-300-N-3 300 DC-3 1.20 N, 7/16 230x160x87
CT50-300-N-6 300 DC-6 1.40 N, 7/16 230x160x87
CT50-500-N-3-A 500 DC-3 1.20 N, 7/16 400x245x97
CT50-500-N-6-A 500 DC-6 1.40 N, 7/16 400x245x97
CT50-500-N-6-B 500 2-6 1.30 N(Male) 280x86x60
CT50-500-N-18-B 500 6-18 1.50 N(Male) 280x86x60
CT50-1000-L29E-3 1000 DC-3 1.30 7/16 400x410x147
CT50-1000-L29E-6 1000 DC-6 1.40 7/16 400x410x147

If you are interested in these products, please you fill out the form below to get in contact with our Sales team
