Part Number	Frequency Range (GHz)	Bandwidth (MHz)	Insertion Loss (dB) Max.	Isolation (dB) Min.	VSWR Max.	Reverse Power (W)	Connector Type	Dimensions LxWxH (mm)	PDF
KTMI-402A2	4.5-5.0	full	0.4	20	1.25	10	GWB	9.8×11.5×4.5
KTMI-502A11	4.0-6.0	full	0.6	16	1.40	10	GWB	10.0×12.0×4.5
KTMI-502A5	5.0-6.0	full	0.5	18	1.25	10	GWB	9.5×11.5×3.5
KTMI-702A	7.1-8.5	full	0.5	20	1.35	10	GWB	10.2×17.2×5.1
KTMI-702A1	7.0-7.5	full	0.5	20	1.25	0.5	GWB	8.0×8.0×3.5
KTMI-702A3	7.0-8.5	full	0.6	18	1.30	10	GWB	6.5×8.5×3.5
KTMI-702A5	5.8-7.2	full	0.5	18	1.25	10	GWB	8.0×10.0×4.0
KTMI-702A7	7.0-9.0	full	0.6	18	1.30	10	GWB	6.5×8.5×3.5
KTMI-902A	8.8-9.8	full	0.5	20	1.25	0.5	GWB	6.0×7.5×4.0
KTMI-902A2	11.9-12.2	full	0.5	20	1.25	0.5	GWB	6.0×7.5×4.0
KTMI-902A3	10.5-10.9	full	0.5	20	1.25	20	GWB	7.1×13.2×5.0
KTMI-902A7	8.5-10.5	full	0.5	18	1.25	20	GWB	7.0×10.0×4.5
KTMI-902A11	13.0-15.0	full	0.6	18	1.30	0.5	GWB	6.0×7.5×4.0
KTMI-902A12	8.5-10.5	full	0.5	18	1.30	10	GWB	6.0×7.5×5.0
KTMI-902A19	8.0-12.0	full	0.6	17	1.35	10	GWB	6.5×8.5×3.5
KTMI-902A42	9.0-12.0	full	0.5	20	1.25	20	GWB	6.0×7.0×3.5
KTMI-1202A	8.0-18.0	full	1.2	11	1.60	20	GWB	8.0×9.5×5.0
KTMI-1202A1	11.0-14.0	full	0.6	18	1.35	10	GWB	6.0×7.0×3.5
KTMI-902A49	11.2-12.3	full	0.6	18	1.30	20	GWB	6.0×7.0×3.5
KTMI-1502A8	15.0-17.0	full	0.6	18	1.30	10	GWB	6.0×7.5×3.3
KTMI-1502A10	14.2-16.2	full	0.6	18	1.30	10	GWB	6.0×7.5×4.0
KTMI-1502A16	12.0-17.0	full	0.8	15	1.45	10	GWB	5.0×7.0×3.5
KTMI-1502A22	14.8-17.2	full	0.6	18	1.35	10	GWB	6.0×7.0×3.5
KTMI-2002A	17.5-22.0	full	0.7	18	1.35	0.5	GWB	5.0×5.0×3.1
KTMI-2602A2	24.5-28.35	full	1.2	18	1.40	0.5	GWB	5.0×5.0×3.1
KTMI-2802A1	28.0-33.0	full	1.1	15	1.50	0.5	GWB	5.0×5.0×3.1
KTMI-3002A3	33.0-37.0	full	1.0	16	1.40	0.5	GWB	5.0×5.0×3.1
KTMI-3002A7	36.0-38.0	full	1.0	18	1.35	0.5	GWB	8.0×5.0×3.1
KTMI-4002A	43.5-45.5	full	1.5	15	1.50	0.5	GWB	3.5×4.5×3.5

Notes:
1) All the above specifications are at room temperature (25℃±5℃).
2) Standard P/N is Clockwise (CW) Rotation. Add letter “R” at the end to P/N for a Counter Clockwise (CCW) Rotation.
3) Product information are subject to change without notice.

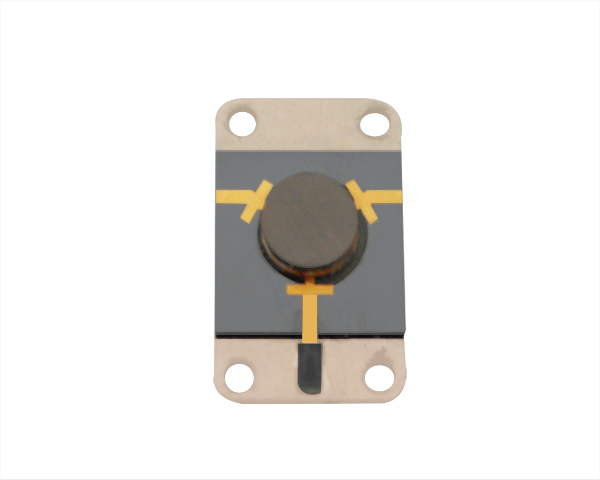

We offer micro-strip isolators with small size from 4.0GHz to 45.5GHz with full bandwidth. These devices are made of thin film technology, golden leads and ferrite material. Kete Microwave supplies the devices with high quality and stable performance over a long period of time. The devices have a temperature range from -55℃ to +85℃. All devices are available RoHS Compliant. If your requirement is not covered in the following table, please consult with Kete Microwave.
