Coaxial SeriesHome > Products > RF Circulators

Features

• Broad Selection of Frequency
• Low Insertion Loss, High Isolation
• Wide Operating Temperature Range
• Customize Design Available Upon Request

High Power Series
• High Reliability, High Power Handling
• High Isolation, Low Insertion Loss
• High Peak Power & Reverse Power
• Wide Operating Temperature Range

  • Product Description
  • Product Guide
Kete offers a series of RF coaxial circulators with SMA or N connectors from 108MHz to 24.5GHz. The devices with high quality and stable performance are supplied over a long period of time. The operating temperature range is from -40℃ to +85℃, high power handling 10W-200W. All components are available RoHS Compliant. They are widely used in remote sensing, telemetry, radar, electronic countermeasures and communications etc. Here list out a part of part numbers as following. Please you directly contact us for more products.

High Power Series
Kete Microwave offers high power circulator with peak power up to 2500W. The devices with high quality and stable performance are supplied over a long period of time. The operating temperature range from -30℃ to +70℃. All devices are available RoHS Compliant. Customize products are available. Please contact Kete for other specifications
Part Number Frequency Range (GHz) Bandwidth (MHz) Insertion Loss (dB) Max. Isolation (dB) Min. VSWR Max. Average Power (W) Connector Type Dimensions
LxWxH (mm)
PDF
KTCC-0101A 0.14-0.24 10 0.6 18 1.30 200 SMA/N 70x70x22
KTCC-0101 0.20-0.30 20 0.5 18 1.30 200 SMA/N 50.5x53x22
KTCC-0301A 0.25-0.45 30 0.4 20 1.25 150 SMA/N 52x57.5x22
KTCC-0401A 0.4-0.6 50 0.4 20 1.25 100 SMA/N 44x49.5x21

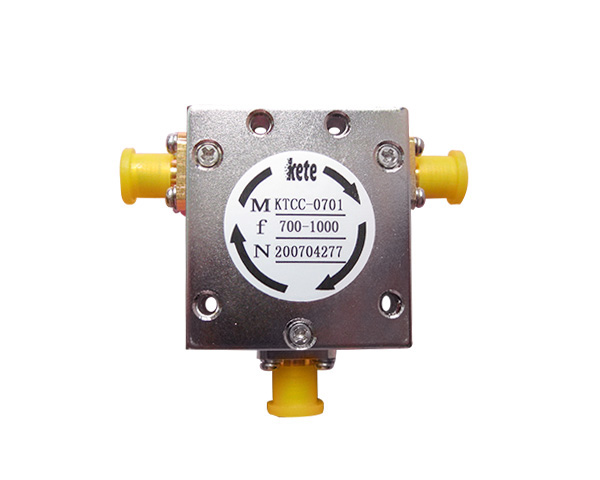

KTCC-0701 0.5-1.0 70 0.4 23 1.20 100 SMA/N 35x38x20
KTCC-101 0.8-1.4 100 0.3 23 1.20 100 SMA/N 30x30x20
KTCC-101A 1.2-2.5 200 0.3 23 1.20 100 SMA/N 25.4x25.4x20
KTCC-201F 2.0-4.0 300 0.4 23 1.20 100 SMA 25x25x15
KTCC-401A 3.5-8.0 600 0.4 20 1.25 20 SMA 16x21x14
KTCC-701A 7.0-20.0 1500 0.4 23 1.20 20 SMA 15x19x13
KTCC-2001 18.0-24.5 2000 0.4 20 1.25 10 SMA-F 12x15x11

High Power Series
Part Number Frequency Range (GHz) Bandwidth (MHz) Insertion Loss (dB) Max. Isolation (dB) Min. VSWR Max. Peak Power (W) Average Power (W) Connector Type Dimensions
LxWxH (mm)
PDF
KTCC-0201A 0.26-0.30 full 0.4 20 1.25 2500 750 N 70x70x30
KTCC0301-500 2.0-2.2 full 0.4 20 1.25 1600 480 N 50x54x30
KTCC101-400 2.0-2.2 full 0.6 18 1.35 1600 480 N 40x40x30

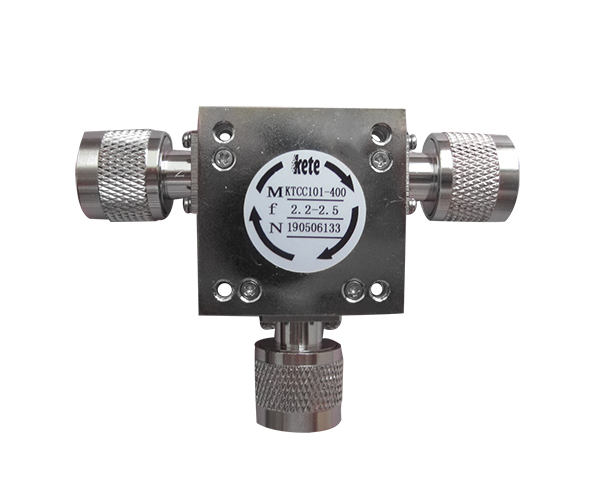

KTCC101-400 2.2-2.5 full 0.6 18 1.35 1600 480 N 40x40x30
Notes:
1) All the above specifications are at room temperature (25℃±5℃).
2) Standard P/N is Clockwise (CW) Rotation. Add letter “R” at the end to P/N for a Counter Clockwise (CCW) Rotation.
3) Product information are subject to change without notice.
