SMA ConnectorHome > Products > Coaxial Fixed Terminations

Features

• Nominal Impedance: 50 Ω
• Power Rating: 2W -1000W
• Frequency Range : DC-18GHz
• Operating Temperature: -55℃ to +125℃
• Connector Type: SMA (Male)


SMA Connector Datasheet

  • Product Description
  • Product Guide

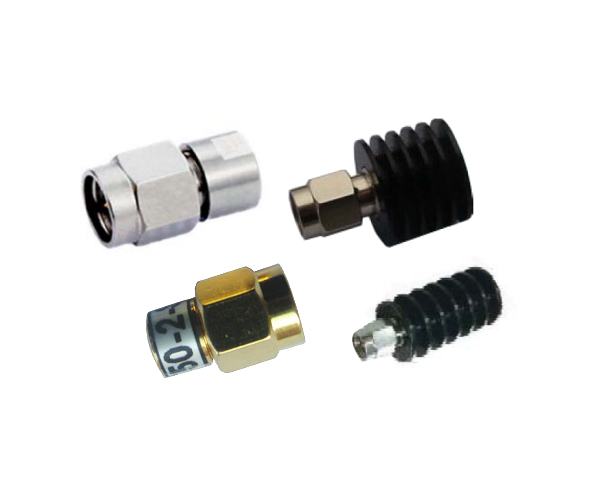

Coaxial fixed terminations absorb RF & microwave energy and are commonly used as dummy loads of antenna and transmitter. They are also used as match ports in many multiport microwave device such as circulators and directional couplers to make these ports which are not involved in the measurement be terminated in their characteristic impedance in order to ensure an accurate measurement.
CT serial high power coaxial fixed termination’s rated power 1W-1KW, wide frequency range DC-18GHz. The low VSWR, excellent capacity are main features.
Part Number Rated Power(W) Frequency Rang (GHz) VSWR (Max.) Connector Type Dimensions LxWxH (mm) PDF
CT50-1-S-6 1 DC-6 1.10 SMA(Male) Φ9×14.4
CT50-1-S-12.4 1 DC-12.4 1.15 SMA(Male) Φ9×14.4
CT50-1-S-18 1 DC-18 1.20 SMA(Male) Φ9×14.4
CT50-1-S-22 1 DC-22 1.25 SMA(Male) Φ9×14.4
CT50-2-S-6 2 DC-6 1.15 SMA(Male) 9x15
CT50-2-S-12.4 2 DC-12.4 1.20 SMA(Male) 9x15
CT50-2-S-18 2 DC-18 1.25 SMA(Male) 9x15
CT50-5-S-6 5 DC-6 1.20 SMA(Male) Φ15.5x24
CT50-5-S-12.4 5 DC-12.4 1.25 SMA(Male) Φ15.5x24
CT50-5-S-18 5 DC-18 1.30 SMA(Male) Φ15.5x24
CT50-10-S-6 10 DC-6 1.20 SMA(Male) Φ17x44
CT50-10-S-12.4 10 DC-12.4 1.25 SMA(Male) Φ17x44
CT50-10-S-18 10 DC-18 1.30 SMA(Male) Φ17x44
