Features

• Nominal Impedance: 50 Ω
• Power Rating: 2W -25W
• Frequency Range : DC-22GHz
• Attenuation Value: 1-30dB
• Operating Temperature: -55℃ to +125℃
• Connector Type: SMA (Male/Female)

SMA Connector  Datasheet

  • Product Description
  • Product Guide

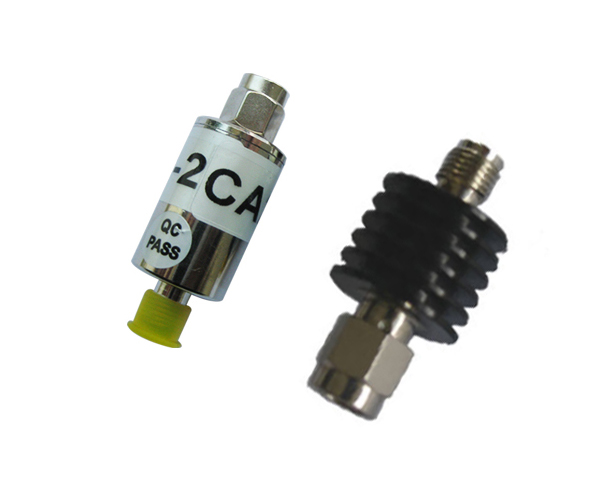

Coaxial fixed attenuators are used in absorbing energy of transmission line, expanding power range and controlling power level, they are also used in accurately measuring power or spectrum of RF microwave transmitters accompany with small power meter, comprehensive tester or spectrum analyzer.
Kete coaxial fixed attenuators feature wide frequency band, low VSWR, flatness attenuation value etc.
Part Number Rated Power (W) Frequency Rang (GHz) Attenuation Value (dB) VSWR (Max.) Dimensions LxWxH (mm) PDF
CA2-XX-S-6-A 2 DC-6 1-9,10, 20, 30 1.20 Φ9.5x31
CA2-XX-S-12.4-A 2 DC-12.4 1-9,10, 20, 30 1.25 Φ9.5x31
CA2-XX-S-18-A 2 DC-18 1-9,10, 20, 30 1.20 Φ9.5x31
CA2-XX-S-6-B 2 DC-6 1-9,10, 20, 30 1.25 Φ7.6x21.7
CA2-XX-S-12.4-B 2 DC-12.4 1-9,10, 20, 30 1.15 Φ7.6x21.7
CA2-XX-S-18-B 2 DC-18 1-9,10, 20, 30 1.25 Φ7.6x21.7
CA2-XX-S-22-B 2 DC-22 1-9,10, 20, 30 1.30 Φ7.6x21.7
CA5-XX-S-6 5 DC-6 1-9,10, 20, 30 1.20 Φ15.5x32
CA5-XX-S-12.4 5 DC-12.4 1-9,10, 20, 30 1.25 Φ15.5x32
CA5-XX-S-18 5 DC-18 1-9,10, 20, 30 1.20 Φ15.5x32
CA10-XX-S-6 10 DC-6 1-9,10, 20, 30 1.25 Φ17x50
CA10-XX-S-12.4 10 DC-12.4 1-9,10, 20, 30 1.30 Φ17x50
CA10-XX-S-18 10 DC-18 1-9,10, 20, 30 1.20 Φ17x50
CA25-XX-S-6 25 DC-6 1-9,10, 20, 30 1.25 Φ45x50.5
CA25-XX-S-12.4 25 DC-12.4 1-9,10, 20, 30 1.20 Φ45x50.5
CA25-XX-S-18 25 DC-18 1-9,10, 20, 30 1.25 Φ45x50.5
