Micro-strip SeriesHome > Products > RF Circulators

Features

• Broad Frequency Range
• Good Consistency
• Small Size, High Precision
• High Isolation, Low Insertion Loss
• Wide Operating Temperature Range:-55℃~+85℃
• Widely Used in Various Millimeter Wave Radar & TR Components


  • Product Description
  • Product Guide

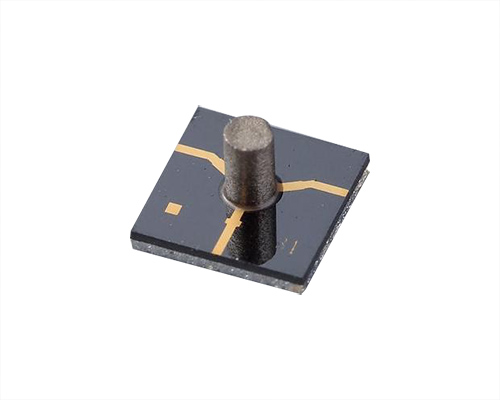

Microstrip Circulators
We offer microstrip circulator with small size from 5.0GHz to 36.0GHz and full bandwidth. These devices are microstrip dual junction circulators as well. These parts are made of golden leads, ferrite material and thin film technology. Kete Microwave supplies the devices with high quality and stable performance over a long period of time. The devices have a wide operating temperature range from -55℃ to +85℃. All devices are available RoHS Compliant. If your requirement is not covered in the following table, please consult with Kete Microwave.

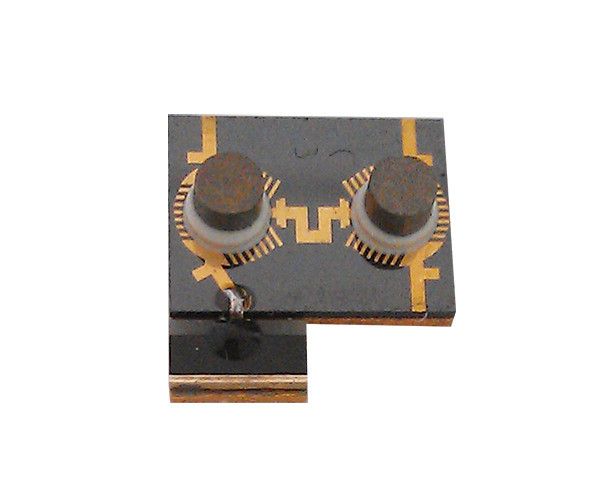

Microstrip Dual Junction Circulators
We offer microstrip dual junction circulators as well. These parts are made of golden leads, ferrite material and thin film technology. Kete Microwave supplies the devices with high quality and stable performance over a long period of time. The devices have a operating temperature range from -55℃ to +85℃. All devices are available RoHS Compliant. If your requirement is not covered in the following table, please you contact with Kete.

Microstrip Circulators
Part Number Frequency Range (GHz) Bandwidth (MHz) Insertion Loss (dB) Max. Isolation (dB) Min. VSWR Max. Average Power (W) Connector Type Dimensions
LxWxH (mm)
PDF
KTMC-502A2 5.0-6.0 full 0.6 17 1.35 / GWB 9.5x9.5x4.0
KTMC-502A3 5.2-5.9 full 0.5 18 1.30 / GWB 10.0x10.0x4.0
KTMC-702A1 6.5-7.1 full 0.5 18 1.30 / GWB 8.0x8.0x4.0
KTMC-902A2 8.6-10.6 full 0.6 17 1.35 / GWB 7.0x6.9x4.5
KTMC-902A3 8.0-12.0 full 0.6 17 1.35 / GWB 8.0x8.0x4.0
KTMC-902A5 8.0-12.0 full 0.6 16 1.40 / GWB 6.5x6.5x3.5
KTMC-902A22 8.0-12.0 full 0.6 17 1.30 30 GWB 6.0x6.0x3.0
KTMC-902A29 9.0-10.0 full 0.5 15 1..45 / GWB 5.0x5.0x3.0
KTMC-1502A6 14.0-18.0 full 0.7 16 1.40 / GWB 5.0x5.0x3.0
KTMC-1502A9 12.0-17.0 full 0.8 15 1.45 / GWB 5.0x5.0x3.5
KTMC-1502A18 14.5-15.5 full 0.5 20 1.25 / GWB 5.0x5.0x3.5
KTMC-2002A 19.5-23.0 full 0.8 15 1.40 / GWB 4.5x6.0x2.0
KTMC-2602A2 24.5-26.5 full 1.0 16 1.40 / GWB 4.5x5.0x3.0
KTMC-3002A2 34.0-36.0 full 1.2 16 1.40 / GWB 4.5x4.5x3.0
KTMC-3002A3 34.0-36.0 full 1.2 16 1.40 / GWB 3.5x3.5x3.5

Microstrip Dual Junction Circulators
Part Number Frequency Range (GHz) Bandwidth (MHz) Insertion Loss (dB) Max. Isolation (dB) Min. VSWR Max. Load Power (W) Connector Type Dimensions
LxWxH (mm)
PDF
KTMC-502AS5 5.1-5.7 full 1.0 38 1.3 10 GWB 17.0x14.0x4.0
KTMC-502AS6 5.1-5.7 full 1.0 38 1.3 10 GWB 17.0x14.0x4.0
KTMC-502AS7 5.2-5.7 full 0.7 39 1.25 10 GWB 18.0x(10+3)x4.0
KTMC-902AS10 8.0-12.0 full 1.2 30 1.3 20 GWB 7.5x(8+3.5)x4.0
KTMC-902AS37 8.0-12.0 full 1.3 28 1.5 10 GWB 10.5x(7+2.8)x3.7
KTMC-1202AS1 11.5-13.5 full 1.1 30 1.3 10 GWB 8.0x(6+3)x4.0
KTMC1502AS4-1 15.5-17.9 full 1.1 30 1.3 10 GWB 8.0x(6+3)x4.0
KTMC-1502AS8 15.7-17.7 full 1.1 30 1.3 20 GWB 8.0x(5+3)x3.5
KTMC-1502AS12 15.7-17.7 full 1.1 30 1.3 20 GWB 8.0x(5+3)x3.5
KTMC-1502AS10 14.5-16.0 full 1.2 30 1.3 10 GWB 12.0x(6+2)x4.0
KTMC-1502AS14 14.5-16.0 full 1.2 30 1.3 10 GWB 12.0x(6+2)x4.0
KTMC-1502AS18 14.0-18.0 full 1.5 30 1.45 20 GWB 8.0x(5+3)x3.5
KTMC-1502A33 15.0-17.0 full 1.0 30 1.30 10 GWB 7.0X(5+2)X3.5
KTMC-1602AS 16.4-17.2 Full 0.9 35 1.25 10 GWB (8+3)x6.5x3.5
Notes:
1) All the above specifications are at room temperature (25℃±5℃).
2) Standard P/N is Clockwise (CW) Rotation. Add letter “R” at the end to P/N for a Counter Clockwise (CCW) Rotation.
3) Product information are subject to change without notice.
