Coaxial SeriesHome > Products > RF Isolators

Features

• Broad Selection of Frequency
• Low Insertion Loss, High Isolation
• Wide Operating Temperature Range
• Customize Design Available Upon Request

High Power Series
• High Reliability, High Power Handling
• High Isolation, Low Insertion Loss
• High Peak Power & Reverse Power
• Wide Operating Temperature Range

  • Product Guide
  • Product Description
Part Number Frequency Range (GHz) Bandwidth (MHz) Insertion Loss (dB) Max. Isolation (dB) Min. VSWR Max. Reverse Power (W) Connector Type Dimensions
L×W×H (mm)
PDF
KTCI-0101A 0.108-0.118 10 0.6 18 1.30 10 SMA/N 70×(70+4.5)×22
KTCI-0101A 0.14-0.24 20 0.6 18 1.30 10 SMA/N 70×(70+4.5)×22
KTCI0101A-B 0.14-0.24 20 0.6 18 1.30 100 SMA/N 70×(70+27)×22
KTCI-0101 0.20-0.30 25 0.5 18 1.30 10 SMA/N 50.5×(53+4.5)×22
KTCI-0101B 0.20-0.30 25 0.5 18 1.30 100 SMA/N 50.5×(53+27)×22
KTCI-0301A 0.25-0.45 35 0.4 20 1.25 10 SMA/N 52×(57.5+4.5)×22
KTCI-0301B 0.25-0.45 35 0.4 20 1.25 100 SMA/N 52×(57.5+27)×22
KTCI-0401A 0.4-0.6 50 0.4 20 1.25 10 SMA/N 44×(49.5+4.5)×21

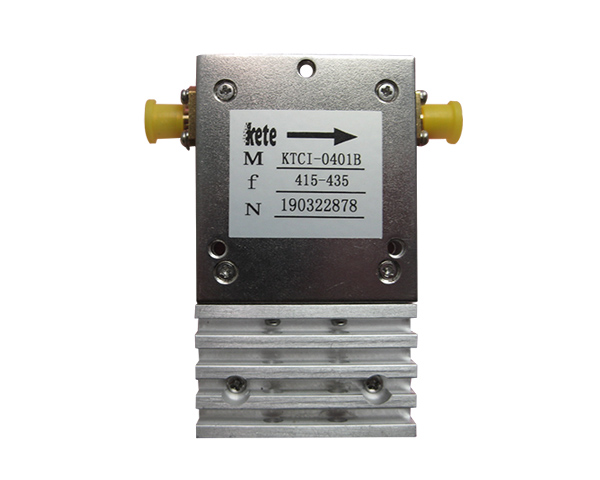

KTCI-0401B 0.4-0.6 50 0.4 20 1.25 100 SMA/N 44×(49.5+27)×21
KTCI-0701 0.5-1.0 75 0.4 23 1.20 10 SMA/N 35×(38+4.5)×20
KTCI-0701B 0.5-1.0 75 0.4 23 1.20 100 SMA/N 35×(38+22)×20
KTCI-101 0.8-1.4 110 0.3 23 1.20 10 SMA/N 30×(33+4.5)×20
KTCI-101B 0.8-1.4 110 0.3 23 1.20 100 SMA/N 30×(33010)×20
KTCI-101A 1.2-2.5 200 0.3 23 1.20 10 SMA/N 25.4×(28.5+4.5)×20
KTCI101A-B 1.2-2.5 200 0.3 23 1.20 100 SMA/N 25.4×(28.5+10)×20
KTCI-201F 2.0-4.0 300 0.4 23 1.20 10 SMA 25×(25+4.5)×15
KTCI-401A 3.5-8.0 600 0.4 23 1.20 10 SMA 16×23×14
KTCI-801F8 7.0-20.0 1500 0.4 23 1.20 10 SMA 12×20×13
KTCI-2001 18.0-24.5 2200 0.6 18 1.35 10 SMA-F 12×16.5×11

High Power Series
Part Number Working Frequency (GHz) InsertionLoss (dB) Max. Isolation (dB) Min. VSWR Max. Peak Power (W) Reverse Power (W) Connector Type Dimensions
L×W×H (mm)
PDF
KTCI0201A-B500 0.26-0.30 0.4 20 1.25 1600 500 N 70×(70+30)×30
KTCI0201A-B800 0.26-0.30 0.4 20 1.25 2500 800 N 70×(70+50)×30
KTCI0301-400 0.32-0.36 0.4 20 1.25 1200 500 N 50×80×24
KTCI0301-500 0.32-0.36 0.4 20 1.25 1600 500 N 50x80x30
Notes:
1) All the above specifications are at room temperature (25℃±5℃).
2) Standard P/N is Clockwise (CW) Rotation. Add letter “R” at the end to P/N for a Counter Clockwise (CCW) Rotation.
3) Product information are subject to change without notice.

We offer a full series of coaxial isolator with SMA or N connectors from 108MHz to 24.5GHz, the bandwidth from 10MHz to full. Kete Microwave supplies the devices with high quality and stable performance over a long period of time. The operating temperature range is from -40℃ to +85℃, high power handling 10W-200W. All devices are available RoHS Compliant. They are widely used in remote sensing, telemetry, radar, electronic countermeasures and communications etc. Here list out a part of part numbers. Please you contact us for more products.

High Power Series
Kete Microwave offers high power coaxial isolator with peak power up to 2500W, load power to 800W. The devices with high quality and stable performance are supplied over a long period of time. The operating temperature range from -30℃ to +70℃. All devices are available RoHS Compliant. Customize products are available. Please contact Kete for other specifications
