N ConnectorHome > Products > Coaxial Fixed Attenuators

Features

• Nominal Impedance: 50 Ω
• Power Rating: 2W -1000W
• Frequency Range: DC-18GHz
• Attenuation Value: 1-60dB
• Operating Temperature: -55℃ to +125℃
• Connector Type: N (Male/Female)

N Connector Datasheet

  • Product Description
  • Product Guide

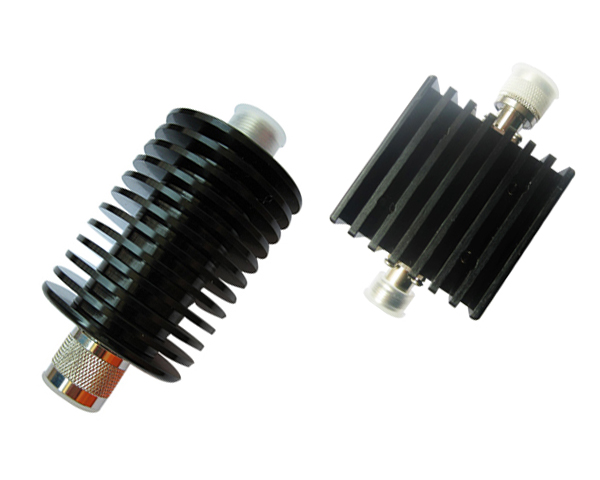

Coaxial fixed attenuators are used in absorbing energy of transmission line, expanding power range and controlling power level, they are also used in accurately measuring power or spectrum of RF microwave transmitters accompany with small power meter, comprehensive tester or spectrum analyzer. Kete coaxial fixed attenuators feature wide frequency band, low VSWR, flatness attenuation value etc.
Part Number Rated Power (W) Frequency Rang (GHz) Attenuation Value (dB) VSWR (Max.) Dimensions LxWxH (mm) PDF
CA2-XX-N-3 2 DC-3 1-9,10, 20, 30 1.20 Φ20x58
CA2-XX-N-6 2 DC-6 1-9,10, 20, 30 1.25 Φ20x58
CA5-XX-N-3-A 5 DC-3 1-9,10, 20, 30 1.20 Φ30x58
CA5-XX-N-6-A 5 DC-6 1-9,10, 20, 30 1.25 Φ30x58
CA5-XX-N-6-B 5 DC-6 1-9,10, 20, 30 1.15 Φ21x52
CA5-XX-N-12.4-B 5 DC-12.4 1-9,10, 20, 30 1.25 Φ21x52
CA5-XX-N-18-B 5 DC-18 1-9,10, 20, 30 1.30 Φ21x52
CA10-XX-N-3-A 10 DC-3 1-9,10, 20, 30 1.20 Φ30x58
CA10-XX-N-6-A 10 DC-6 1-9,10, 20, 30 1.25 Φ30x58
CA10-XX-N-6-B 10 DC-6 1-9,10, 20, 30 1.20 Φ21x71
CA10-XX-N-12.4-B 10 DC-12.4 1-9,10, 20, 30 1.25 Φ21x71
CA10-XX-N-18-B 10 DC-18 1-9,10, 20, 30 1.30 Φ21x71
CA20-XX-N-3 20 DC-3 1-9,10, 20, 30 1.20 Φ35x72
CA20-XX-N-6 20 DC-6 1-9,10, 20, 30 1.25 Φ35x72
CA30-XX-N-3 30 DC-3 1-9,10, 20, 30 1.20 Φ38x109
CA30-XX-N-6 30 DC-6 1-9,10, 20, 30 1.25 Φ38x109
CA50-XX-N-3-A 50 DC-3 1-9,10, 20, 30 1.20 Φ45x109
CA50-XX-N-6-A 50 DC-6 1-9,10, 20, 30 1.25 Φ45x109
CA50-XX-N-3-B 50 DC-3 1-9,10, 20, 30 1.20 Φ45x143
CA50-XX-N-8-B 50 DC-8 1-9,10, 20, 30 1.25 Φ45x143
CA50-XX-N-12.4-B 50 DC-12.4 1-9,10, 20, 30 1.30 Φ45x143
CA50-XX-N-18-B 50 DC-18 1-9,10, 20, 30 1.40 Φ45x143
CA50-XX-N-3-C 50 DC-3 1-9,10, 20, 30 1.20 60x80x60
CA50-XX-N-6-C 50 DC-6 1-9,10, 20, 30 1.25 60x80x60
CA100-XX-N-3-A 100 DC-3 1-9,10, 20, 30 1.20 120x100x60
CA100-XX-N-6-A 100 DC-6 1-9,10, 20, 30 1.30 120x100x60
CA100-XX-N-6-B 100 DC-6 1-9,10, 20, 30 1.30 130x76x76
CA100-XX-N-8-B 100 DC-8 1-9,10, 20, 30 1.35 130x76x76
CA100-XX-N-10-B 100 DC-10 1-9,10, 20, 30 1.40 130x76x76
CA200-XX-N-3-A 200 DC-3 1-9,10, 20, 30 1.20 200x142x65
CA200-XX-N-6-A 20 DC-6 1-9,10, 20, 30 1.30 200x 42x65
CA200-XX-N-6-B 20 DC-6 1-9,10, 20, 30 1.30 200x142x65
CA200-XX-N-8-B 20 DC-8 1-9,10, 20, 30 1.35 200x142x65
CA200-XX-N-10-B 20 DC-10 1-9,10, 20, 30 1.40 200x142x65
CA300-XX-N-3 300 DC-3 1-9,10, 20, 30 1.20 230x160x87
CA300-XX-N-6 300 DC-6 1-9,10, 20, 30 1.40 230x160x87
CA500-XX-N-3 500 DC-3 1-9,10, 20, 30 1.30 400x245x97
CA500-XX-N-6 500 DC-6 1-9,10, 20, 30 1.30 400x245x97
CA1000-XX-L29B-3 1000 DC-3 30,40,50,60 1.40 400x410x147
CA1000-XX-L29B-6 1000 DC-6 30,40,50,60 1.50 400x410x147
