Surface Mount SeriesHome > Products > RF Isolators

Features

• Vibration Resistance, Shock Resistance
• Compact Structure, Small Size
• High Frequency Characteristic
• Wide Operating Temperature Range
• Widely Used in All Kinds of Base Stations, Small Power Amplifier etc.

  • Product Guide
  • Product Description
Part Number Frequency Range (GHz) Bandwidth (MHz) Insertion Loss (dB) Max. Isolation (dB) Min. VSWR Max. Reverse Power (W) Connector Type Dimensions
LxWxH (mm)
PDF
KTSI102M1-4 0.35-0.50 20 0.7 18 1.30 10 SMD 25.4×25.4×10
KTSI102M1-4 0.5-1.0 40 0.5 23 1.20 10 SMD 25.4×25.4×10
KTSI102S01-100 0.8-2.2 150 0.3 23 1.20 100 SMD φ26.5×10.5
KTSI202S08-100 1.2-3.8 130 0.4 23 1.2 100 SMD φ18×8
KTSI-102K4 1.5-2.2 20 0.4 20 1.25 5 SMD 10×10×6
KTSI-202S05 1.8-2.7 110 0.4 20 1.25 10 SMD φ13.5×7
KTSI-302S06 2.0-6.0 400 0.4 20 1.25 10 SMD φ10.8×7
KTSI-302S03 2.2-5.0 360 0.4 20 1.25 10 SMD φ9.8×7
KTSI-902C1 8.8-10.2 full 0.5 20 1.25 1 SMD φ6.35×4
KTSI-902C1 9.0-11.0 1000 0.5 20 1.25 1 SMD φ6.35×4

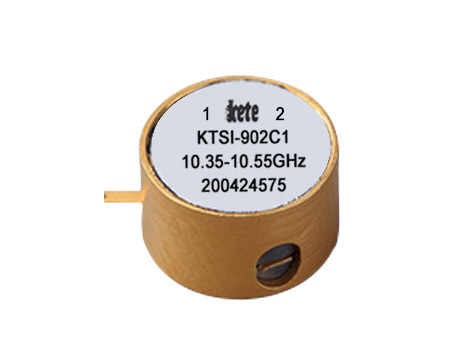

KTSI-902C1 10.35-10.55 full 0.5 20 1.25 1 SMD φ6.35×4
Notes:
1) All the above specifications are at room temperature (25℃±5℃).
2) Standard P/N is Clockwise (CW) Rotation. Add letter “R”at the end to P/N for a Counter Clockwise (CCW) Rotation.
3) Product information are subject to change without notice.
Kete Microwave offers SMD (surface mount) isolators with small sizes from 0.35GHz to 10.55GHz. The devices with high quality and stable performance are done over a long period of time. The operating temperature range is from -40℃ to +85℃.All devices are available RoHS Compliant. Customize products are available. Here list out a part of part numbers. Please you contact us for more products.
