Surface Mount SeriesHome > Products > RF Circulators

Features

• Vibration Resistance, Shock Resistance
• Compact Structure, Small Size
• High Frequency Characteristic
• Wide Operating Temperature Range
• Widely Used in All Kinds of Base Stations, Small Power Amplifier etc.

  • Product Description
  • Product Guide
Kete Microwave offers SMD circulators with small sizes from 0.35GHz to 10.55GHz.These devices are made of magnets and ferrite material. We supply the devices with high quality and stable performance over a long period of time. The operating temperature range is from -40℃ to +85℃.All devices are available RoHS Compliant. If your requirement is not covered in the following table, please contact with Kete Microwave.
Part Number Frequency Range (GHz) Bandwidth (MHz) Insertion Loss (dB) Max. Isolation (dB) Min. VSWR Max. Forward Power (W) Connector Type Dimensions
LxWxH (mm)
PDF
KTSC102M1-4 0.35-0.50 21 0.7 18 1.30 100 SMD 25.4x25.4x10
KTSC102M1-4 0.5-1.0 37 0.5 23 1.20 100 SMD 25.4x25.4x10
KTSC-102S06 0.8-2.2 150 0.3 23 1.20 100 SMD φ25.4x10

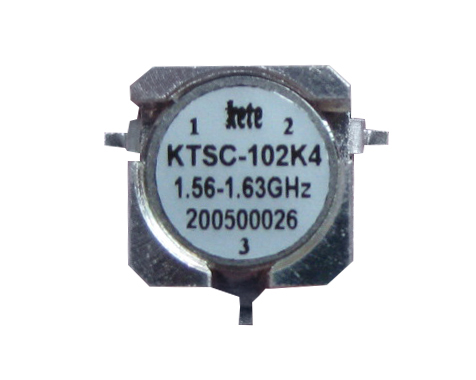

KTSC-102K4 1.5-2.2 18 0.4 20 1.25 20 SMD 10x10x6
KTSC-202S08 1.2-3.8 130 0.4 23 1.20 100 SMD φ20.4x8
KTSC-202S05 1.8-2.7 120 0.4 20 1.25 100 SMD φ13.5x7
KTSC-302S03 3.3-3.8 full 0.5 17 1.30 30 SMD φ10.2x7
KTSC-902C 8.8-10.2 full 0.5 20 1.25 10 SMD φ6.35x4
KTSC-902C 10.35-10.55 full 0.5 20 1.25 10 SMD φ6.35x4
Notes:
1) All the above specifications are at room temperature (25℃±5℃).
2) Standard P/N is Clockwise (CW) Rotation. Add letter “R” at the end to P/N for a Counter Clockwise (CCW) Rotation.
3) Product information are subject to change without notice.
